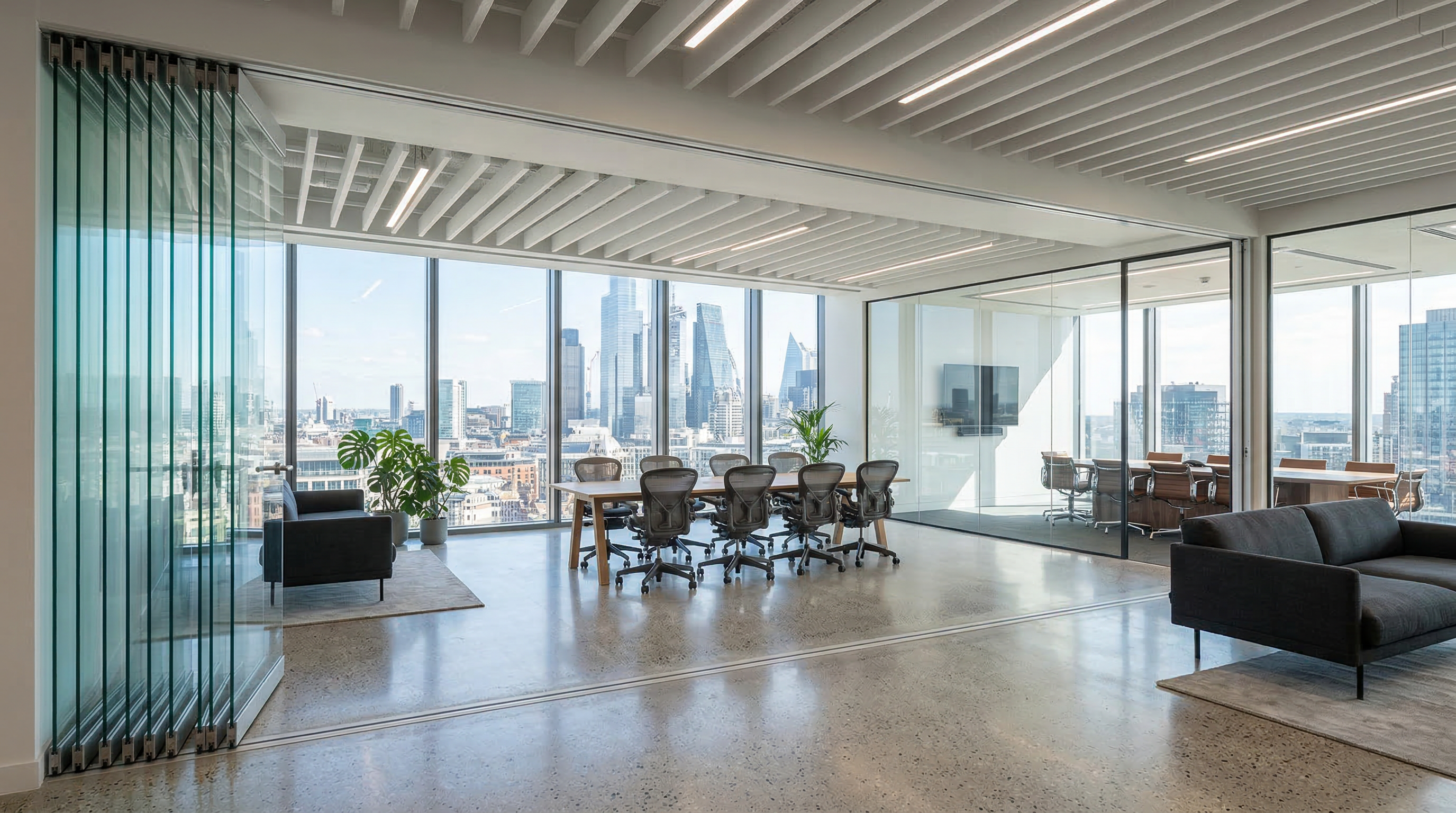

MG500 Flush Glazed
Movable Wall System:
Rw up to 43 dB, four configurations
The MG500 is a flush glazed sliding folding partition system combining slim aluminium framing with full-height glass panels and acoustic performance up to Rw 43 dB. Available in four operating configurations for maximum design flexibility.
Acoustic Rating
Rw up to 43 dB
Configurations
4 Operating Formats
Glass Type
Low Iron / Clear Glass
Certification
FIS Accredited Install
Definition
What is the MG500 movable wall?
The MG500 is a flush glazed partition system — a full-height glass sliding folding wall with slim aluminium framing that delivers both visual openness and acoustic performance up to Rw 43 dB. It is available in four operating configurations to suit any project layout.
Acoustic performance is achieved through dual-layer glass construction (low iron or clear) with acoustic seals at top and bottom — independently tested to ISO 140-3 and rated to ISO 717-1. The system is specified across offices, conference centres, education buildings and hospitality venues.
The MG500 is the correct choice when both visual transparency and meaningful acoustic separation are required — where a standard glazed partition does not provide enough sound reduction, but a solid movable wall would sacrifice the light and openness of the space.
Quick Answers
Product Overview
Flexibility, Design and Acoustic Performance
The MG500 is a flexible flush glazed partition system designed to provide elegant space division while maintaining maximum transparency and natural light. With four operating configurations available, the MG500 allows architects and designers to create adaptable interior environments without compromising on aesthetics or acoustic performance.
The system combines slim aluminium framing with full height glass panels, delivering a clean contemporary appearance suitable for offices, conference spaces and commercial interiors. As a premium flush glazed partition system, the MG500 is the preferred choice wherever visual openness and sound separation are equally valued.
Rw up to 43 dB
Acoustic glazed partition performance
Flush Glazed
Minimal frame for maximum glass area
4 Configurations
Folding, pivot, sliding, operable wall
71mm Panel
Slim profile, minimal sight lines
Acoustic Rating
Rw 43 dB
Independently tested
How It Works
How Does a Flush Glazed Sliding Folding Partition Work?
The MG500 operates as a hinged or sliding glazed partition. Full-height glass panels are hinged together or suspended from an overhead track and fold or slide to one side — creating a clear opening when required and a continuous glazed wall when closed.
Panels folded open
Glass panels fold and stack to one side of the opening, or retract into a pocket. The full opening is clear and unobstructed.
Panels unfolded to close
Panels are unfolded or slid along the overhead track to close the opening. The flush glazed panels form a continuous, clean glass wall.
Acoustic seals engaged
Top and bottom rubber acoustic seals engage when panels are in the closed position, ensuring sound reduction is maximised across the full panel height.
Space divided or opened
The MG500 allows rapid reconfiguration from open to divided — or divided to open — by a single operator without specialist training.
System Configurations
What are the Four MG500 System Configurations?
The MG500 system can be configured in four main operating formats. Each delivers the same flush glazed aesthetic and acoustic performance — giving architects and designers the freedom to choose the right operating format for every space.
Configuration 1

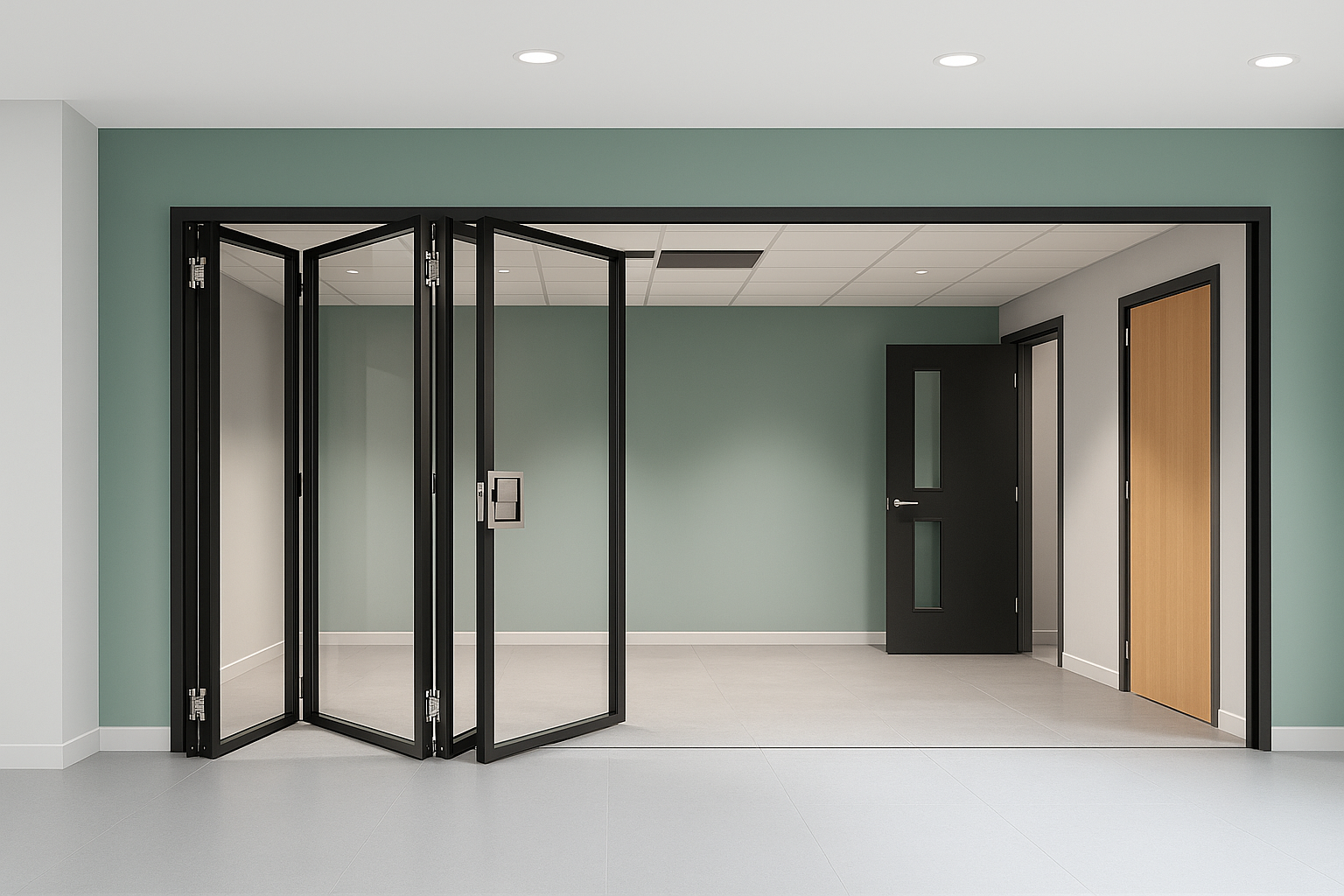

Flush Glazed Hinged Sliding Folding System
Floor Supported
A hinged sliding folding configuration allowing panels to fold and stack neatly to one side. This floor-supported configuration is ideal for creating flexible room divisions while maintaining a sleek glazed aesthetic. Panels hinge together accordion-style for rapid, effortless reconfiguration.
glass folding partition · floor supported
Configuration 2
Flush Glazed Pivot Panel System
Top Hung
Pivoting glazed panels that rotate smoothly on a top-hung mechanism. This configuration creates striking architectural openings and allows panels to pivot to create flexible, open layouts. The top-hung mechanism requires no floor track, delivering an unobstructed threshold.
glazed operable wall · top hung pivot
Configuration 3
Flush Glazed Pocket Straight Sliding Door Panel
Top Hung
Straight sliding glazed panels that glide into a pocket or stacking area. This top-hung configuration is ideal for creating wide openings while maintaining clean, uninterrupted glass lines when closed. Panels disappear neatly into the pocket for maximum clear opening.
glass sliding partition system · pocket door
Configuration 4
Flush Glazed Operable Wall Panel
Top Hung
A glazed operable wall configuration where independent panels slide and stack to divide or open spaces. This option is ideal for meeting rooms, conference areas and flexible office layouts where maximum versatility is required.
flush glazed partition system · operable wall
Product Video Demonstration
See the MG500 in Action
Watch the MG500 flush glazed partition system in operation. These videos demonstrate how the full-height glass panels operate across different configurations — folding, sliding and pivoting — and how acoustic seals engage to deliver high-performance sound insulation.

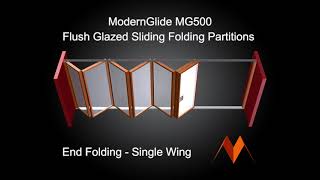

MG500 Flush Glazed Sliding Folding Partition — Operation Demonstration
This video demonstrates how the MG500 movable acoustic wall system operates, showing panel movement and stacking configurations in a real installation environment.

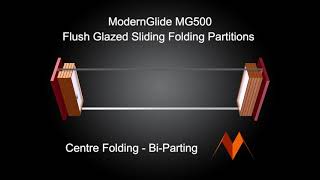

All Videos (3)
About these videos: The MG500 product demonstration videos above show how the movable acoustic wall system operates in practice. Each video illustrates a different configuration or stacking option, demonstrating how panels move along the overhead track, how they fold and stack into the designated parking area, and how the acoustic seals engage to create a high-performance sound barrier. These demonstrations help architects, interior designers and project managers understand the operational simplicity and flexibility of the MG500 system before specifying or installing.
Key Features
What Makes the MG500 the Right Choice?
Flush Glazed Panels
Full-height glass panels with minimal aluminium framing create a seamless glazed appearance. The flush profile maximises glass area and natural light transmission for clean, straight visual lines.
Acoustic Performance to Rw 43 dB
Dual-layer low iron or clear glass with acoustic seals delivers sound reduction up to Rw 43 dB. All ratings independently tested to ISO 140-3 and rated in accordance with ISO 717-1.
Four Operating Configurations
Available as hinged sliding folding (floor supported), pivot panel (top hung), pocket straight sliding (top hung) or operable wall (top hung) — adapting to any project requirement.
Slim Aluminium Frame
Black as standard with powder coat to any RAL colour available. The 71 mm panel thickness and slim edge profiles maximise the glazing area for an elegant modern appearance.
Full Height Pass Door
The MG500 includes a full height pass door closure panel as standard, allowing convenient access without needing to open the entire partition system.
Manifestation Options
Glass manifestation available in a wide range of patterns, films and custom designs. Frosted, etched and printed options available. Meets Building Regulations Part M requirements.

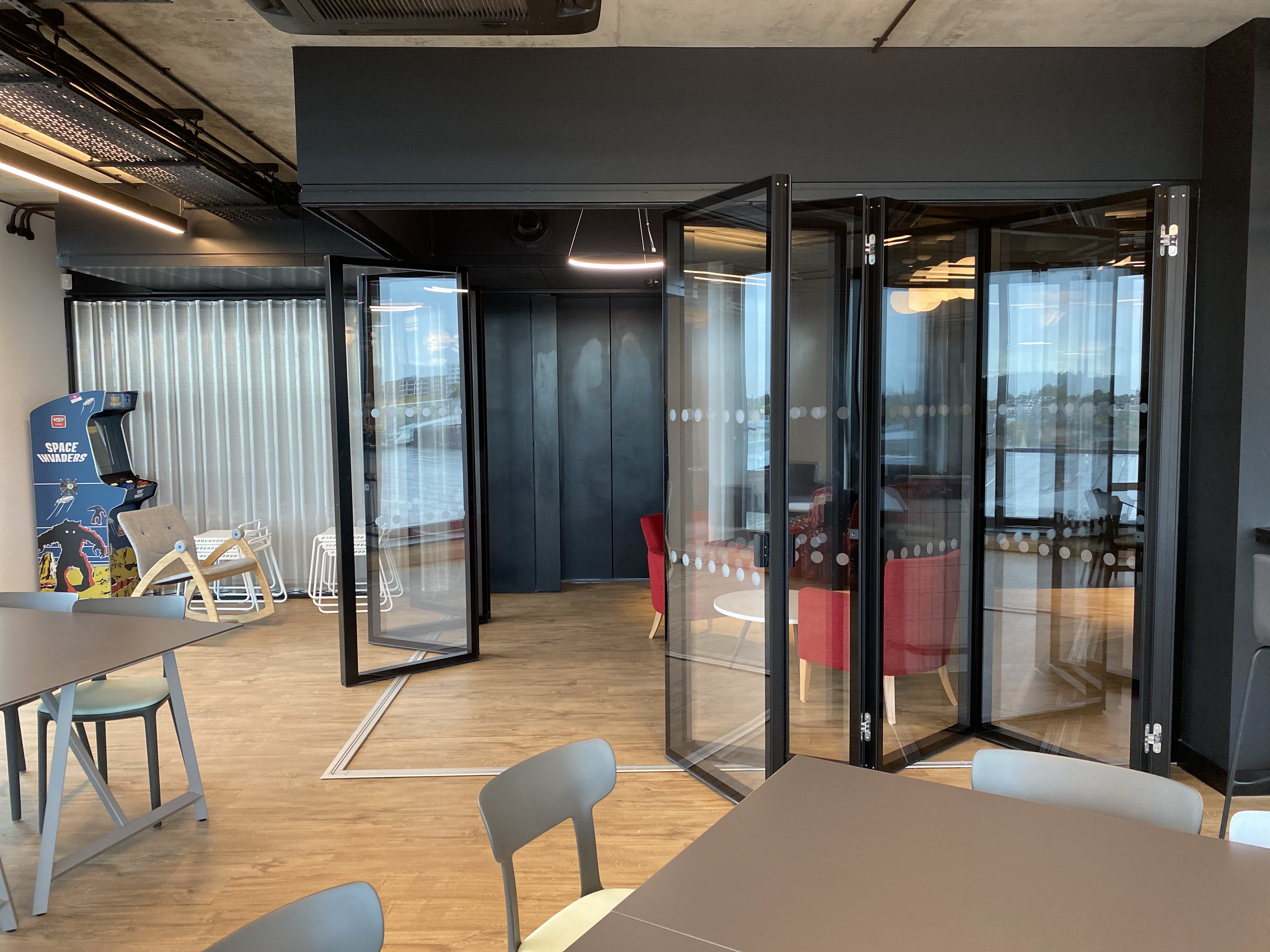

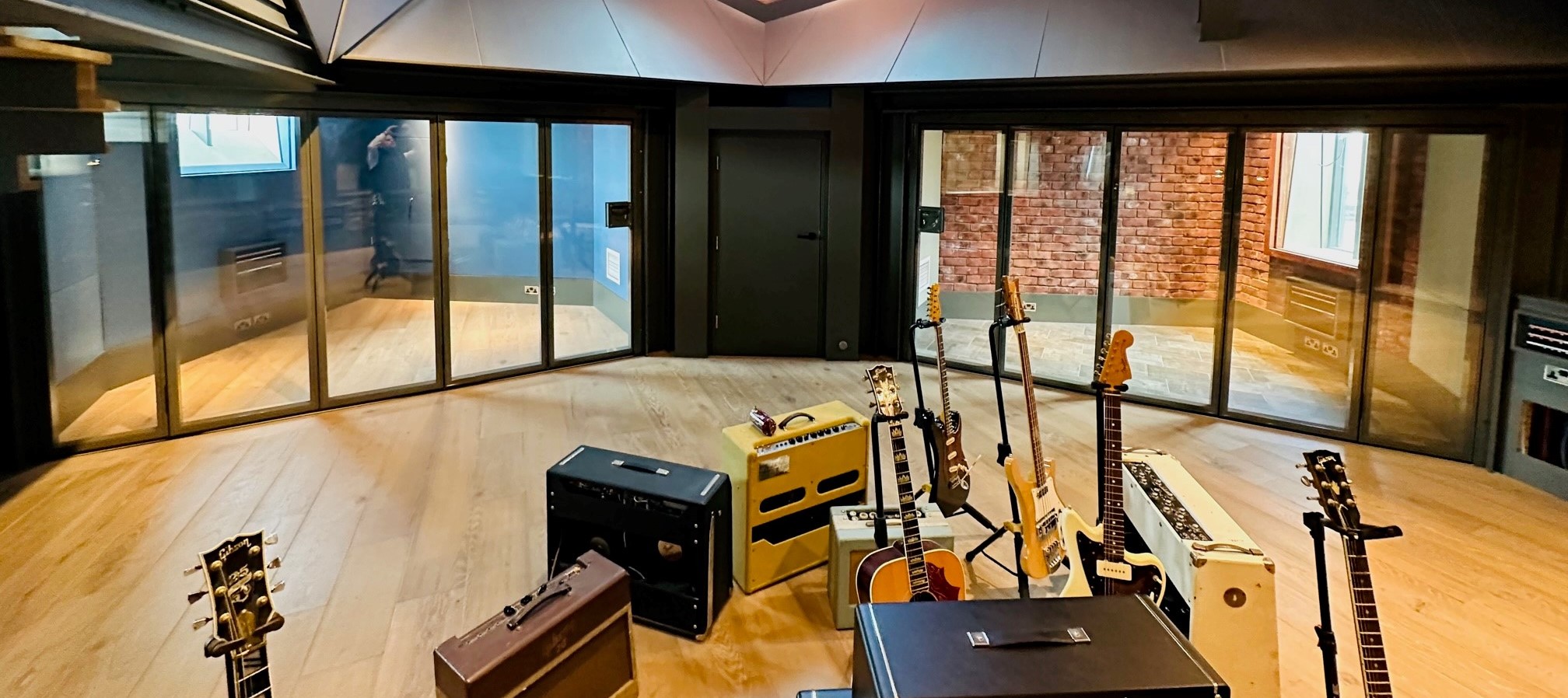

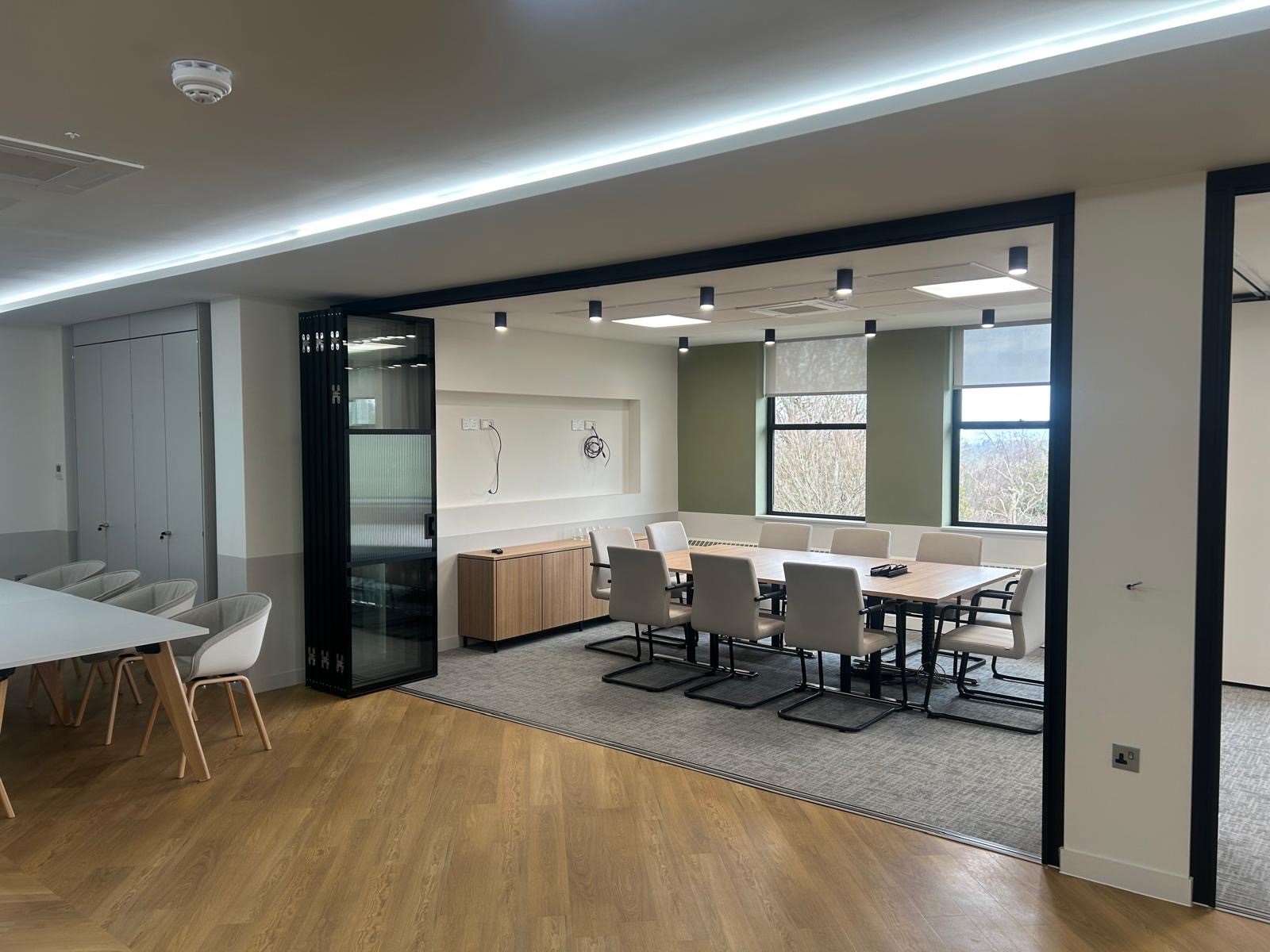

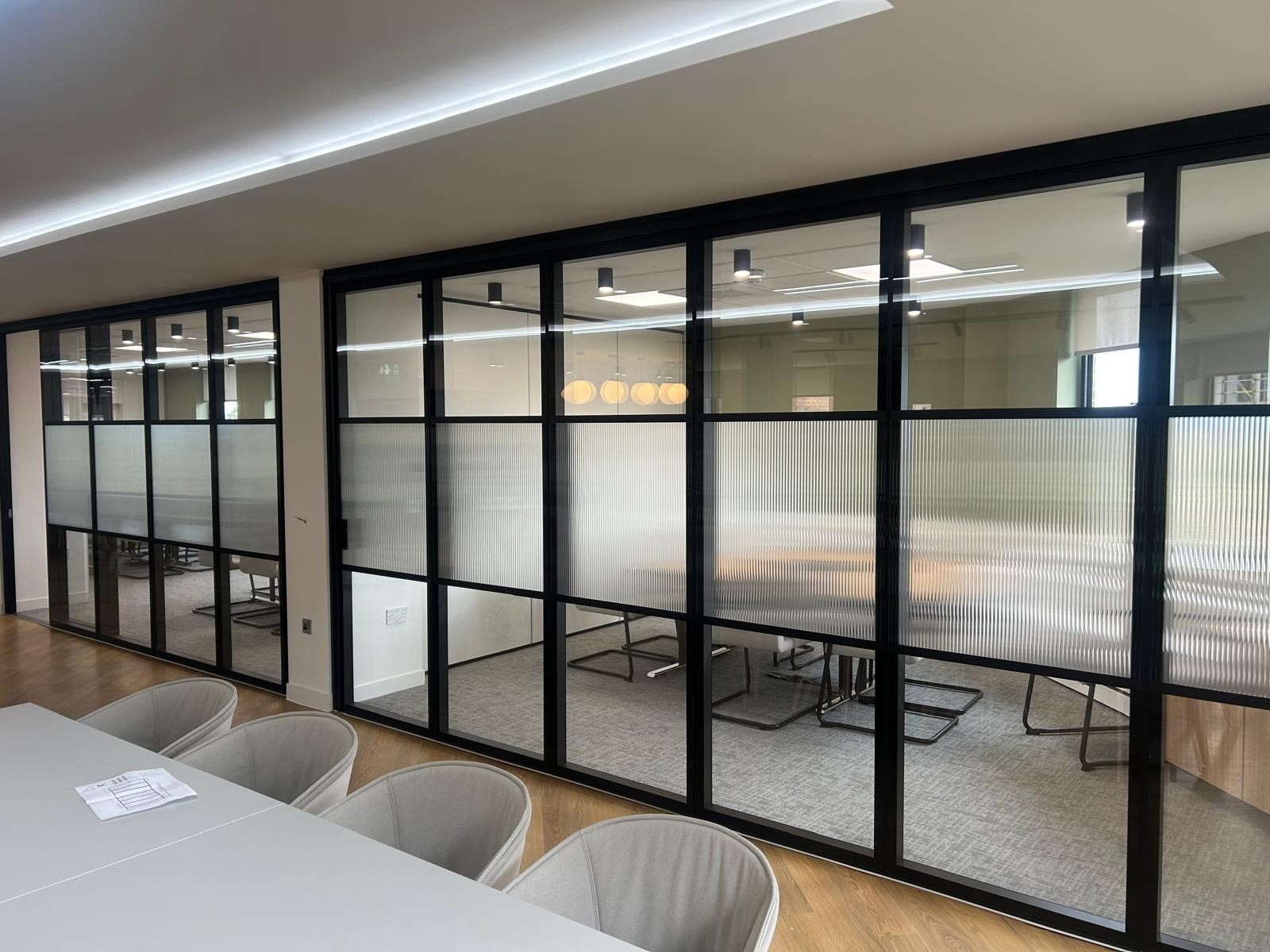

Project Gallery
MG500 Installations
A selection of completed MG500 flush glazed partition installations across offices, corporate environments and commercial interiors.
System Comparison
Glazed Acoustic Partition vs Solid Movable Wall: Which is Right?
The choice between a glazed acoustic partition and a solid movable wall depends on the balance between acoustic performance, natural light and visual connectivity required for the space.
This System
MG500 Flush Glazed Partition
- Full-height glass panels — maximum natural light
- Visual connectivity maintained between spaces
- Acoustic performance Rw up to 43 dB
- Slim 71 mm flush aluminium frame
- Four operating configurations
- Ideal for offices, meeting rooms, conference spaces
- Contemporary architectural aesthetic
Alternative
MG100 Solid Movable Acoustic Wall
- Solid opaque panels — no visual connection
- Maximum acoustic performance Rw up to 59 dB
- Top-hung — no floor track required
- Wide range of panel finishes
- Better for high-acoustic demand spaces
- Ideal for conference halls, schools, hotels
- Higher acoustic specification
Choosing between glazed and solid systems? The MG500 is the right choice when visual openness and natural light are priorities alongside acoustic separation. Our technical team can advise on the correct system for your acoustic brief.
Related Systems
You May Also Consider

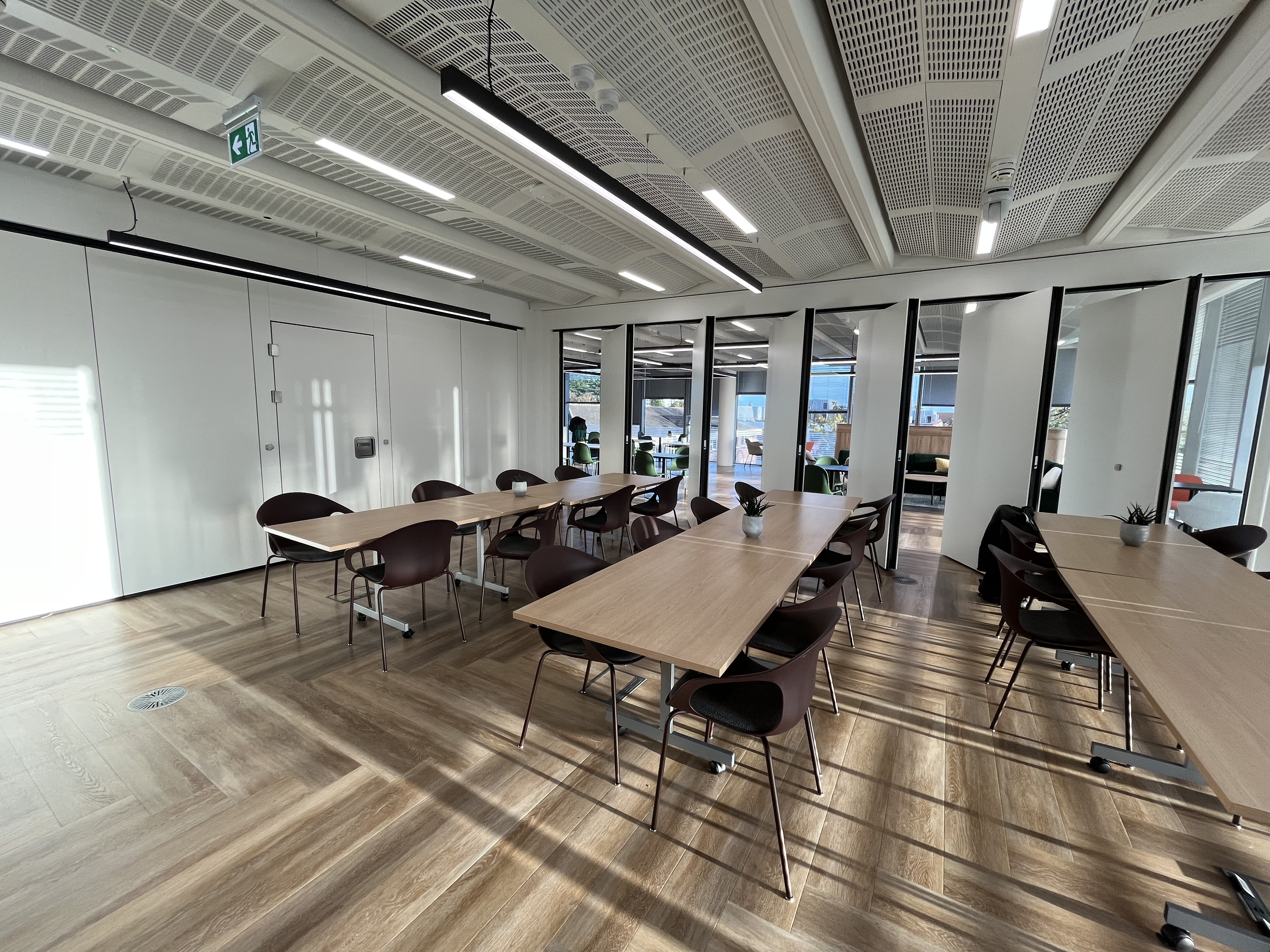

MG100
Movable Acoustic Wall
Top-hung operable wall for maximum acoustic performance.
Rw up to 59 dBMG600
Glazed Operable Wall
Floor-to-ceiling glazed operable wall system with higher acoustic performance.

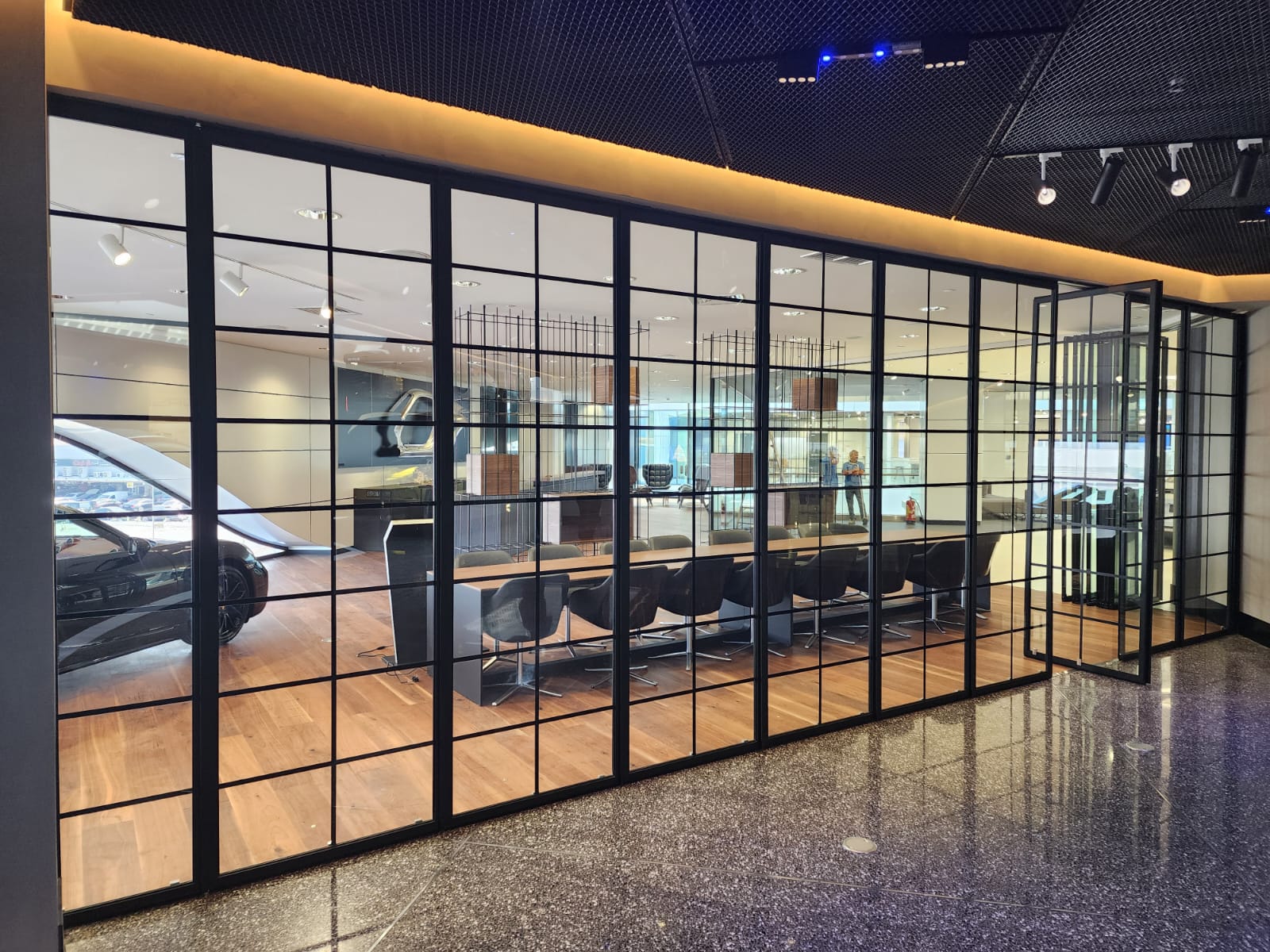

Rw up to 50 dBMG900

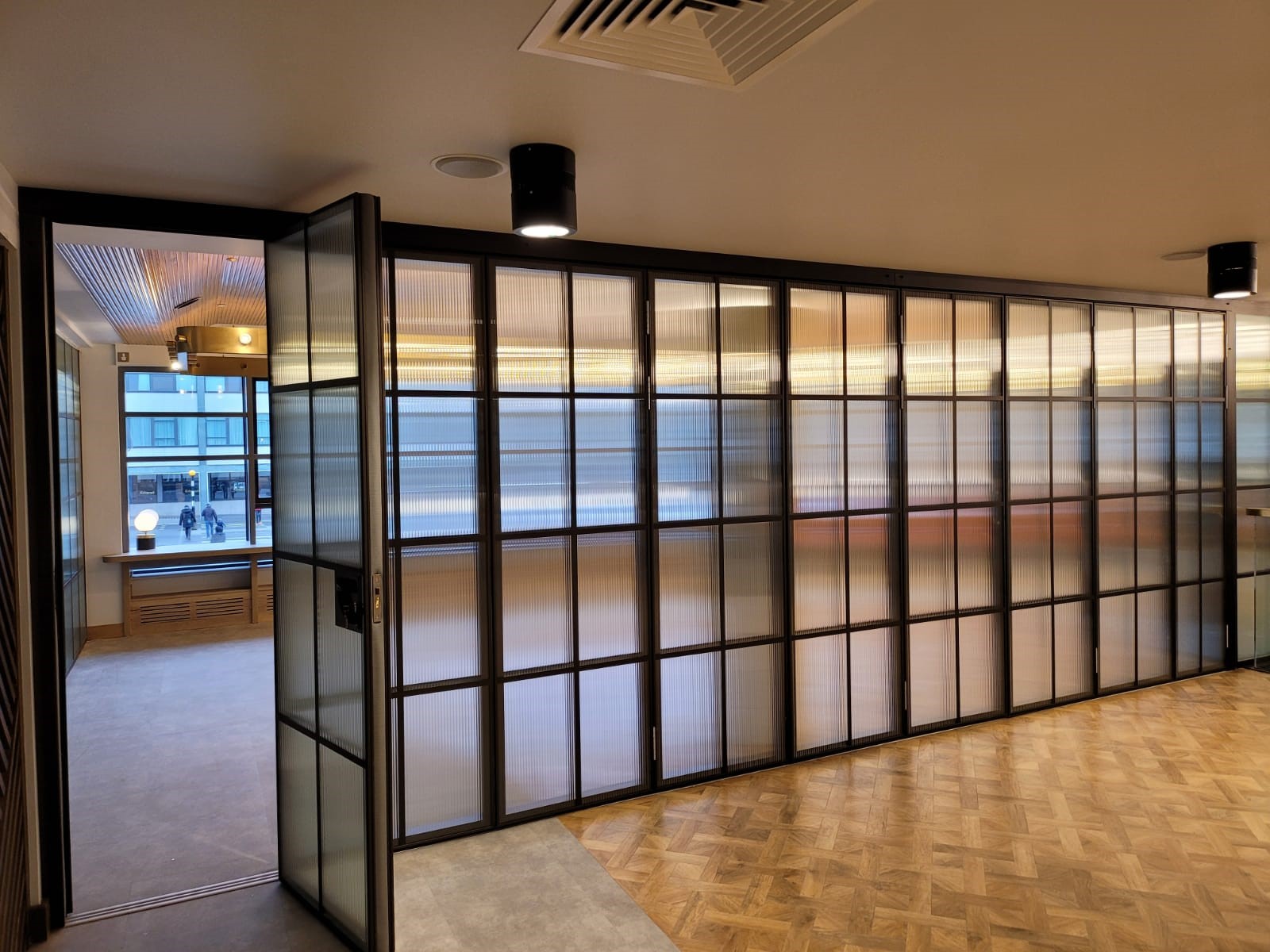

Crittall Style Partitions
Crittall glazed sliding folding partition with 35 mm slim aluminium frame.
Rw 33 dBSpecify the MG500
Discuss Your MG500 Project
Our technical team can help you select the right configuration and glass specification for your project — from initial design through to FIS-accredited installation.
